Stock code:002381

Aramid Conveyor Belt

Usage

Combined with high strength, lightweight materials and multifunction cover materials, the DOUBLE

ARROW @ aramid conveyor belt are suitable for various application areas.

Characteristics

  • Low energy consumption

    The structure of straight warp and straight weft consists of aramid cords in warp and nylon cord in weft in both sides which will protect the belt. The lightweight DOUBLE ARROW @ aramid conveyor belt can reduce the power consumption of the conveyor.It will save more energy by using energy-saving rubber with low rolling resistance as the pulley side.

  • Impact resistance

    As the toughness of aramid fabric can protect the conveyor belt from being punctured by sharp conveying materials. It can also reduce the damage of the conveyor belt even if in high drop distance.

  • High heat resistance and flame resistance

    High heat resistance property will protect the conveyor belt from being damaged by conveying materials with high temperature. Even the burning substance is not easy to penetrate the aramid core.

  • Anti-corrosion

    Aramid, as the man-made fabric itself is superior resistant to media. Otherwise, it has excellent properties in chemical resistance and corrosion resistance.

  • Optimized belt design for a long lifetime

    As there’s single fabric ply only, the carcass is light and flexible with optimum strength utilization. Aramid conveyor belts are excellent in fatigue resistance throughout their lifetime. Top and bottom cover meet high demands on wear and impact resistance,which provides the optimum protection for the valuable aramid.

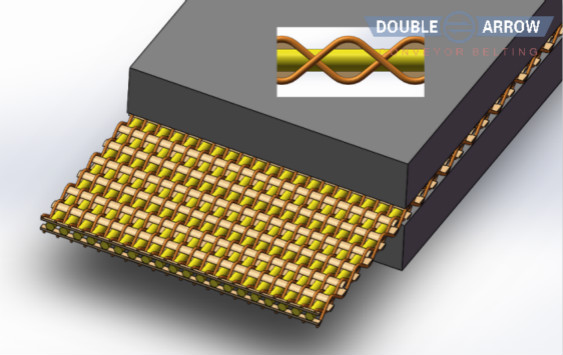

Structure

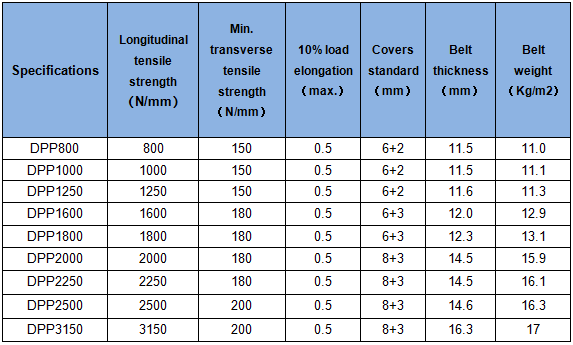

Standard Specifications


Note: It can be customized according to customers’ requirements.

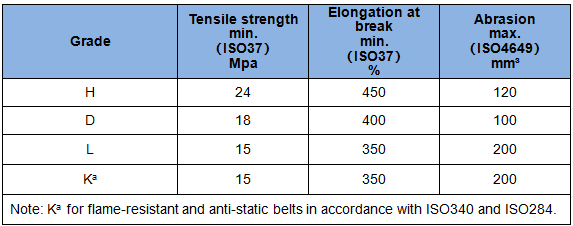

Cover Grades

In accordance with ISO15236-2016 standard


The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
